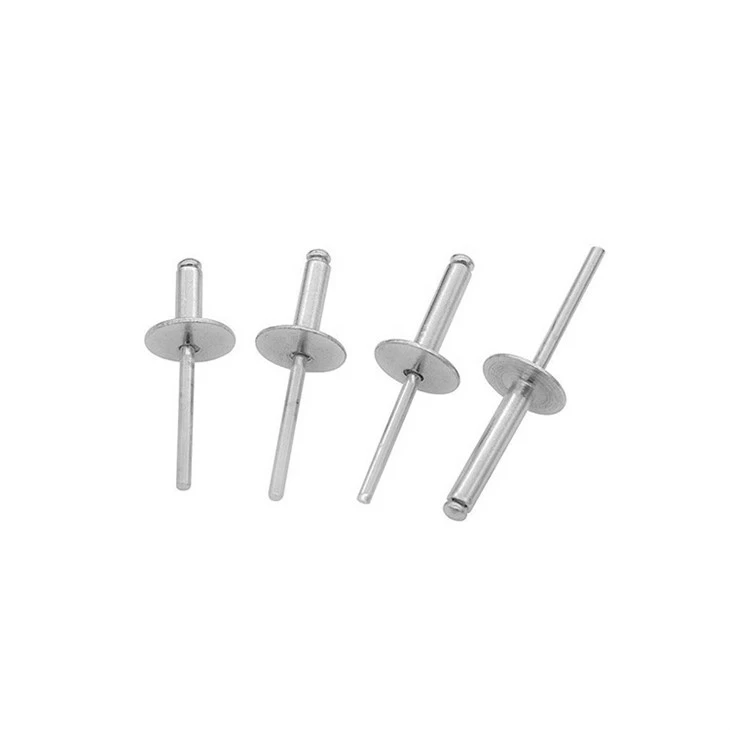

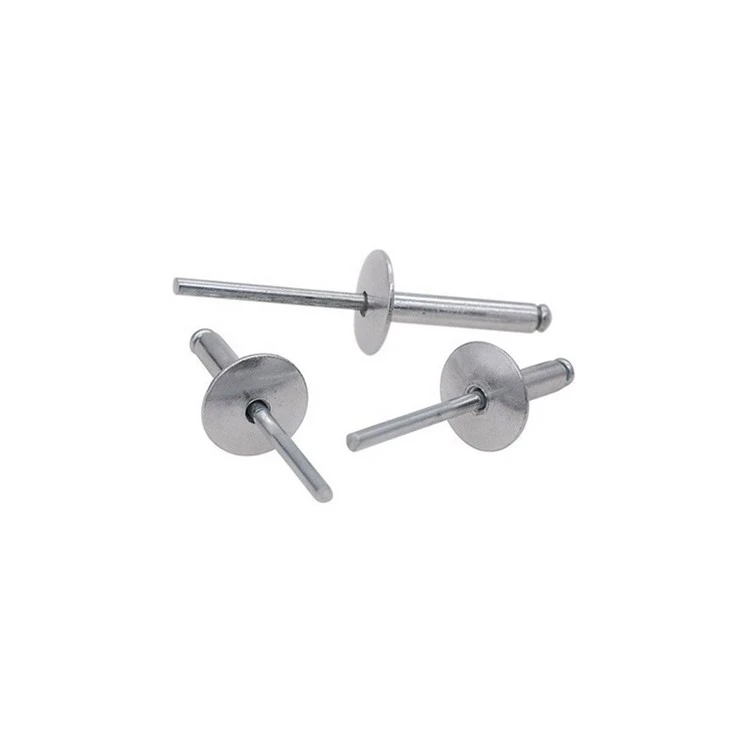

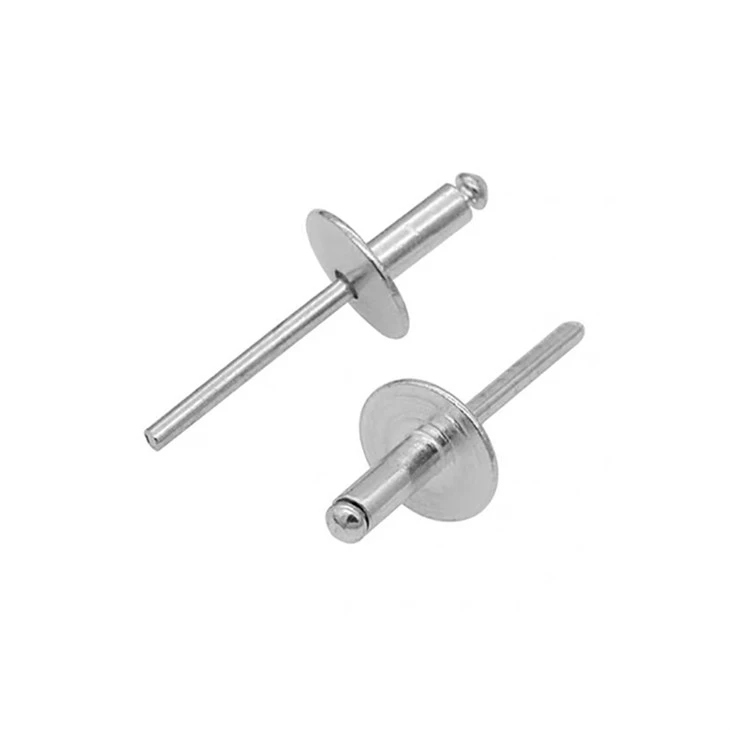

Loj Flange Dig Muag Rivets

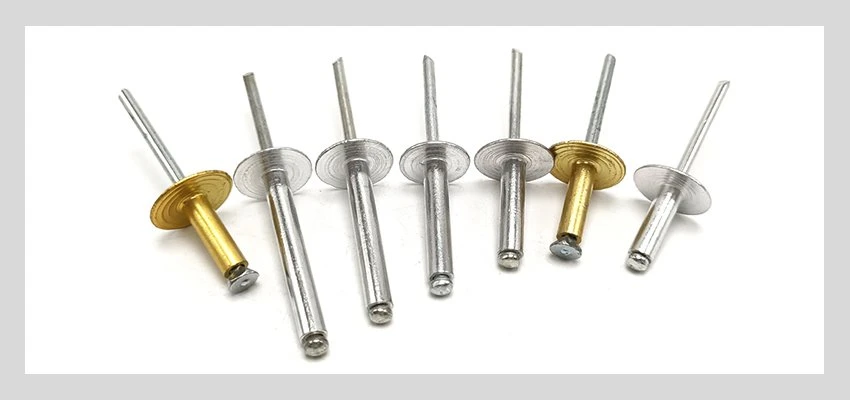

Loj flange taub hau rivets yog ib hom dig muag rivet, txawv los ntawm muaj ib tug loj flange tshaj dome rivets. Peb cov khoom loj flange rivets hauv steel thiab aluminium.

Specification

Khoom siv: Aluminium, Stainless hlau.

Hom: Qhib-End Dig Muag Rivets

Lub taub hau Style: Dome / Loj flange / 120 degree countersunk taub hau

Txoj kab uas hla: M2.4 M3.0 M3.2 M4.0 M4.8 M5.0 M6.0

Ntev: 4mm -40mm

Finish: Zinc Plated / Xim Xim (Raws li tus neeg thov)

Packing: Boxes plus Cartons plus Pallets lossis Customized Packing.

Lub sij hawm xa tuaj: 15-30 hnub

Khoom nta & Daim ntawv thov

Loj flange qhov muag tsis pom rivets tuaj yeem siv nyob txhua qhov chaw yog tias lawv tau teeb tsa zoo. Lawv feem ntau yog siv rau hauv kev tsim khoom siv dav hlau, Machinery, Sheet hlau fabricating, Me Electronics, Cov kab teeb ci, Battleships thiab Submersibles.

1. Zoo tagnrho rau kev siv ntau yam.
2. Muaj ntau yam khoom siv.
3. Dome, countersunk lossis loj flange taub hau hom.
4. Cov xim pleev xim tiav muaj kom haum rau ib puag ncig.
5. Loj flange rivets yog siv thaum tsis muaj kev nkag mus rau qhov muag tsis pom ntawm ob cov ntaub ntawv.
6. Lub tshuab ntxhua khaub ncaws loj dua faib cov siab tshaj qhov chaw ntau dua.
7. Siv los koom ob yam khoom ua ke sai.
8. Tom qab mandrel tawg tawm domed lub taub hau yog sab laug.
9. Feem ntau siv los tiv thaiv kev puas tsuaj rau cov ntaub ntawv mos thiab deter rub-los ntawm.
10. Aluminium rivets yuav tsum tsis txhob siv nrog stainless hlau: Corrosion yuav tshwm sim.

Txhim kho qhov muag tsis pom Rievt

Ua ntej kev teeb tsa rivet tuaj yeem tshwm sim, ntau yam yuav tsum tau coj mus rau hauv tus account.

Cov khoom siv tswv tsev
Head Shape Design
Rivet Length & Diameter
Grip Range
Load thiab Shear Values
Rivet Installation Tool

Txhim kho qhov loj flange qhov muag tsis pom rivet yog txheej txheem yooj yim thiab ceev heev, tsuas yog ob peb kauj ruam yooj yim teev hauv qab no.

Laum ib lub qhov rau hauv cov ntaub ntawv, tom qab ntawd xaiv qhov chaw rivet rau hauv ob cov ntaub ntawv.
Muab lub Rivet Installation Tool rau ntawm lub mandrel ntawm rivet.

Qhib lub cuab yeej (feem ntau yog los ntawm qee lub zog lossis lub tshuab ua haujlwm) kom rub lub mandrel ntawm qhov chaw.

Packing & Shipping

Kev Ua Tau Zoo - Muaj zog txaus los txhawb nqa tag nrho koj cov haujlwm. Superior corrosion resistant haum rau kev siv dej ntsev.

Loj flange dig muag rivets yog qhov nrov tshaj plaws rivet ntau yam muaj.

Cim npe nrov: loj flange dig muag rivets
